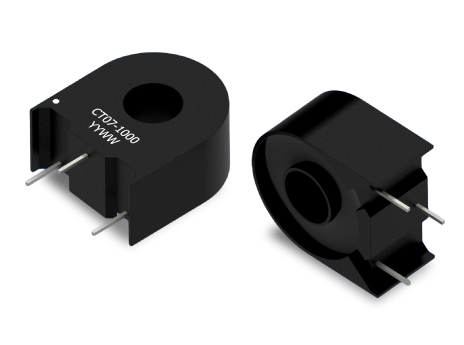

CT07-1000 — Current Sense Transformers from ICE Components
ICE Components · Current Sense Transformers · CT07 Series

CT07-1000

13 parametric specifications · In-stock inquiry available

Datasheet
Manufacturer ICE Components
Family CT07 Series
Category Current Sense Transformers

⚡ Electrical Specifications

Current Rating
200 A, Max
ET Product
6000 V-μs, Max
Max Freq
2.5 kHz, Ref
Secondary DCR
26 Ω, Max
Secondary Inductance
8 mH, Min
Turns Ratio
1:1000 TR

◈ Mechanical Specifications

Footprint
23.6 x 13.0 mm, Max
Height
26.9 mm, Max
Mounting Type
TH

◉ Environmental Specifications

Max Temp
105 °C

◎ Other Specifications

Hi Pot
3750 VAC
Samples Available
✅
SRF
3.2 1-3
