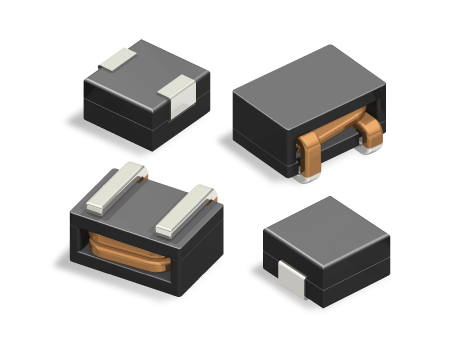

IN09020 — VRM/VRD Inductors from ICE Components
ICE Components · VRM/VRD Inductors · IN09020 Series

IN09020

8 parametric specifications · In-stock inquiry available

Datasheet
Manufacturer ICE Components
Family IN09020 Series
Category VRM/VRD Inductors

⚡ Electrical Specifications

DCR
2.2 mΩ, Max
Inductance
900.0 nH, Min
Isat @125°C
24 Adc, Max
Isat @25°C
30.0 Adc, Max

◈ Mechanical Specifications

Footprint
10.4 x 11.5 mm, Max
Height
9.8 mm, Max
Shielded
No

◉ Environmental Specifications

Max Temp
130 °C
