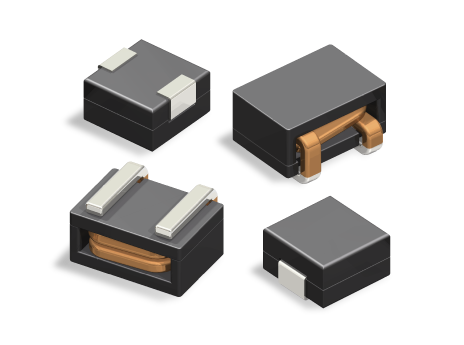

IN09141 — VRM/VRD Inductors from ICE Components
ICE Components · VRM/VRD Inductors · IN09141 Series

IN09141

8 parametric specifications · In-stock inquiry available

Datasheet
Manufacturer ICE Components
Family IN09141 Series
Category VRM/VRD Inductors

⚡ Electrical Specifications

DCR
23.8 mΩ, Max
Inductance
7040.0 nH, Min
Isat @125°C
4.0 (@ +100°C) Adc, Max
Isat @25°C
4.8 Adc, Max

◈ Mechanical Specifications

Footprint
10.4 x 10.4 mm, Max
Height
5.6 mm, Max
Shielded
Yes

◉ Environmental Specifications

Max Temp
130 °C
