ICE Components · Gate Drive Transformers

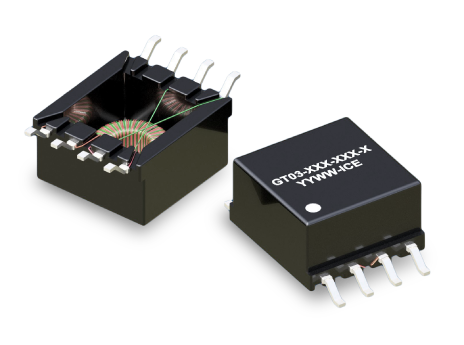

GT03 Series

9 parts · 13 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategoryGate Drive Transformers

Parts9

Datasheet

Smart Filters

Describe what you need

Parametric Filters

GT03-111-034-A

Drive Inductance: 882 μH
DCR: 550:550:550 mΩ
Leakage Inductance: 300 nH
ET Product: 34.6 V-μs

GT03-111-034-B

Drive Inductance: 882 μH
DCR: 600:600:600 mΩ
Leakage Inductance: 360 nH
ET Product: 34.6 V-μs

GT03-111-052-A

Drive Inductance: 1985 μH
DCR: 850:850:850 mΩ
Leakage Inductance: 370 nH
ET Product: 51.9 V-μs

GT03-111-069-A

Drive Inductance: 2000 μH
DCR: 1300:1300:1300 mΩ
Leakage Inductance: 300 nH
ET Product: 69 V-μs

GT03-111-069-B

Drive Inductance: 2000 μH
DCR: 1430:1300:1300 mΩ
Leakage Inductance: 470 nH
ET Product: 69 V-μs

GT03-111-110-A

Drive Inductance: 5100 μH
DCR: 1900:1900:1900 mΩ
Leakage Inductance: 550 nH
ET Product: 110 V-μs

GT03-122-037-A

Drive Inductance: 162 μH
DCR: 265:590:590 mΩ
Leakage Inductance: 180 nH
ET Product: 37.1 V-μs

GT03-122-037-B

Drive Inductance: 162 μH
DCR: 280:590:590 mΩ
Leakage Inductance: 240 nH
ET Product: 37.1 V-μs

GT03-122-055-A

Drive Inductance: 365 μH
DCR: 400:900:900 mΩ
Leakage Inductance: 300 nH
ET Product: 55.6 V-μs
