ICE Components · THT Class D Inductors

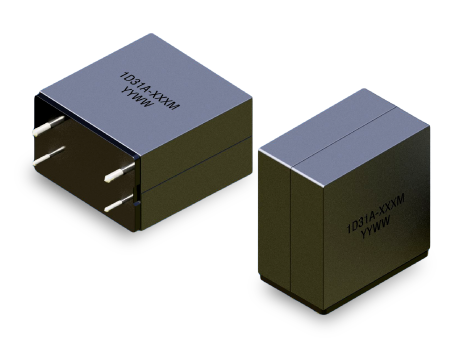

1D31A Series

5 parts · 9 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategoryTHT Class D Inductors

Parts5

Datasheet

Smart Filters

Describe what you need

Parametric Filters

1D31A-100MC

Inductance: 10 μH
DCR: 6.3 mΩ
Isat: 50 A
Idc: 12.5 A

1D31A-120MC

Inductance: 12 μH
DCR: 6.3 mΩ
Isat: 50 A
Idc: 12.5 A

1D31A-150MC

Inductance: 15 μH
DCR: 6.9 mΩ
Isat: 42 A
Idc: 12 A

1D31A-180MC

Inductance: 18 μH
DCR: 6.3 mΩ
Isat: 32 A
Idc: 12.5 A

1D31A-220MC

Inductance: 22 μH
DCR: 6.9 mΩ
Isat: 31 A
Idc: 12 A
