ICE Components · Gate Drive Transformers

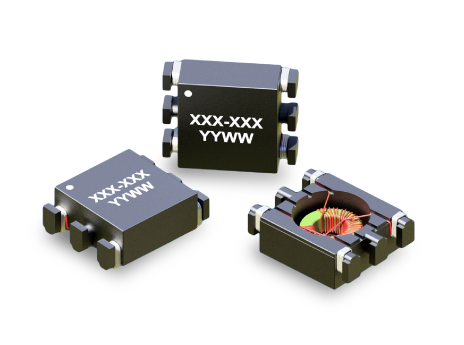

GT02 Series

8 parts · 13 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategoryGate Drive Transformers

Parts8

Datasheet

Smart Filters

Describe what you need

Parametric Filters

GT02-110-006

Drive Inductance: 135 μH
DCR: 225:225 mΩ
Leakage Inductance: 200 nH
ET Product: 6.9 V-μs

GT02-110-010

Drive Inductance: 290.4 μH
DCR: 320:320 mΩ
Leakage Inductance: 200 nH
ET Product: 10.2 V-μs

GT02-110-019

Drive Inductance: 785 μH
DCR: 600:520 mΩ
Leakage Inductance: 360 nH
ET Product: 19.4 V-μs

GT02-111-006

Drive Inductance: 135 μH
DCR: 230:230:230 mΩ
Leakage Inductance: 100 nH
ET Product: 6.9 V-μs

GT02-120-006

Drive Inductance: 21.6 μH
DCR: 110:280 mΩ
Leakage Inductance: 100 nH
ET Product: 6.9 V-μs

GT02-120-014

Drive Inductance: 86.4 μH
DCR: 190:410 mΩ
Leakage Inductance: 150 nH
ET Product: 13.8 V-μs

GT02-122-006

Drive Inductance: 21.6 μH
DCR: 110:280:280 mΩ
Leakage Inductance: 100 nH
ET Product: 6.9 V-μs

GT02-122-008

Drive Inductance: 48.6 μH
DCR: 160:260:260 mΩ
Leakage Inductance: 150 nH
ET Product: 8.3 V-μs
