Ronicon Engineering
/
ICE Components
/
Gate Drive Transformers
/
GT04 Series
ICE Components · Gate Drive Transformers

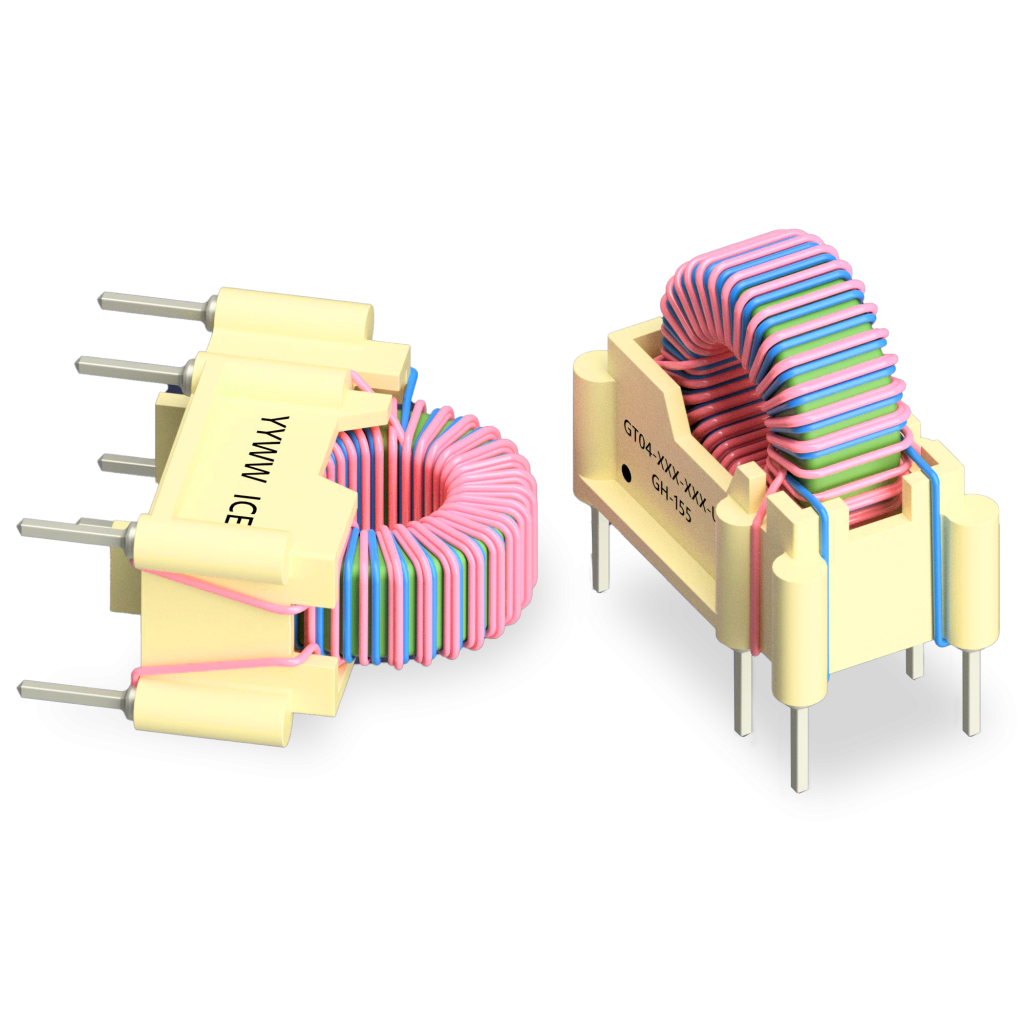

GT04 Series
33 parts · 14 parametric specifications · In-stock inquiry available
Manufacturer
ICE Components
Category
Gate Drive Transformers
Parts
33
Add All to Cart
Datasheet
Export PDF
33
parts — page 1 of 2
Grid
Table
GT04-111-063-_
GT04 Series
Drive Inductance
247
μH
DCR
40:40:40
mΩ
Leakage Inductance
200
nH
ET Product
63
V-μs
GT04-111-063-_E
GT04 Series
Drive Inductance
247
μH
DCR
70:40:40
mΩ
Leakage Inductance
400
nH
ET Product
63
V-μs
GT04-111-069-U
GT04 Series
Drive Inductance
330
μH
DCR
85:80:80
mΩ
Leakage Inductance
700
nH
ET Product
69
V-μs
GT04-111-125-U
GT04 Series
Drive Inductance
1000
μH
DCR
480:450:450
mΩ
Leakage Inductance
1200
nH
ET Product
125
V-μs
GT04-111-126-_
GT04 Series
Drive Inductance
990
μH
DCR
70:70:70
mΩ
Leakage Inductance
400
nH
ET Product
126
V-μs
GT04-111-126-_E
GT04 Series
Drive Inductance
990
μH
DCR
160:70:70
mΩ
Leakage Inductance
600
nH
ET Product
126
V-μs
GT04-111-189-U
GT04 Series
Drive Inductance
2400
μH
DCR
2000:1900:1900
mΩ
Leakage Inductance
2500
nH
ET Product
189
V-μs
GT04-111-189-_
GT04 Series
Drive Inductance
2220
μH
DCR
200:200:200
mΩ
Leakage Inductance
500
nH
ET Product
189
V-μs
GT04-111-189-_E
GT04 Series
Drive Inductance
2220
μH
DCR
200:200:200
mΩ
Leakage Inductance
500
nH
ET Product
189
V-μs
GT04-111-251-U
GT04 Series
Drive Inductance
4200
μH
DCR
2500:2200:2200
mΩ
Leakage Inductance
3500
nH
ET Product
251
V-μs
GT04-111-252-_
GT04 Series
Drive Inductance
3960
μH
DCR
500:500:500
mΩ
Leakage Inductance
700
nH
ET Product
252
V-μs
GT04-111-252-_E
GT04 Series
Drive Inductance
3960
μH
DCR
800:500:500
mΩ
Leakage Inductance
900
nH
ET Product
252
V-μs
GT04-111-315-_
GT04 Series
Drive Inductance
6180
μH
DCR
1000:1000:1000
mΩ
Leakage Inductance
800
nH
ET Product
315
V-μs
GT04-111-315-_E
GT04 Series
Drive Inductance
6180
μH
DCR
1000:1000:1000
mΩ
Leakage Inductance
800
nH
ET Product
315
V-μs
GT04-111-378-_
GT04 Series
Drive Inductance
8910
μH
DCR
2700:2700:2700
mΩ
Leakage Inductance
1200
nH
ET Product
378
V-μs
GT04-111-378-_E
GT04 Series
Drive Inductance
8910
μH
DCR
1200:2700:2700
mΩ
Leakage Inductance
1500
nH
ET Product
378
V-μs
GT04-122-063-_
GT04 Series
Drive Inductance
39
μH
DCR
20:40:40
mΩ
Leakage Inductance
150
nH
ET Product
63
V-μs
GT04-122-063-_E
GT04 Series
Drive Inductance
39
μH
DCR
40:40:40
mΩ
Leakage Inductance
400
nH
ET Product
63
V-μs
GT04-122-075-U
GT04 Series
Drive Inductance
60
μH
DCR
45:80:80
mΩ
Leakage Inductance
400
nH
ET Product
75
V-μs
GT04-122-125-U
GT04 Series
Drive Inductance
160
μH
DCR
200:400:400
mΩ
Leakage Inductance
400
nH
ET Product
125
V-μs
GT04-122-126-_
GT04 Series
Drive Inductance
158
μH
DCR
40:70:70
mΩ
Leakage Inductance
200
nH
ET Product
126
V-μs
GT04-122-126-_E
GT04 Series
Drive Inductance
158
μH
DCR
70:70:70
mΩ
Leakage Inductance
400
nH
ET Product
126
V-μs
GT04-122-189-_
GT04 Series
Drive Inductance
356
μH
DCR
100:200:200
mΩ
Leakage Inductance
250
nH
ET Product
189
V-μs
GT04-122-189-_E
GT04 Series
Drive Inductance
356
μH
DCR
100:200:200
mΩ
Leakage Inductance
250
nH
ET Product
189
V-μs
1
2
Next →
