ICE Components · Gate Drive Transformers

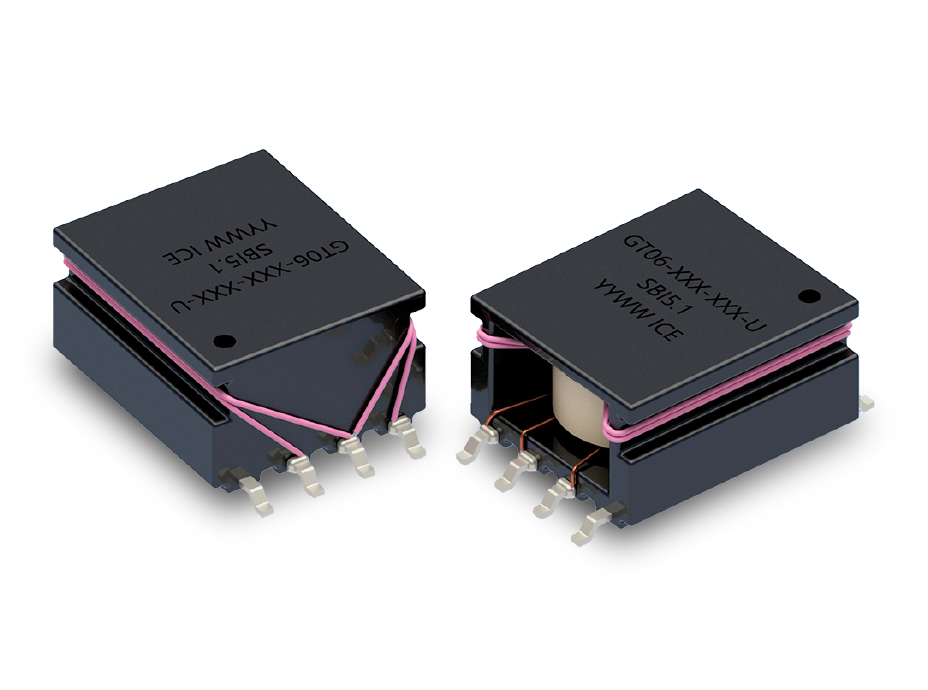

GT06 Series

19 parts · 14 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategoryGate Drive Transformers

Parts19

Datasheet

Smart Filters

Describe what you need

Parametric Filters

GT06-110-039-U

Drive Inductance: 470 μH
DCR: 880:340 mΩ
Leakage Inductance: 1300 nH
ET Product: 39 V-μs

GT06-110-053-U

Drive Inductance: 850 μH
DCR: 1130:460 mΩ
Leakage Inductance: 1300 nH
ET Product: 53 V-μs

GT06-110-071-U

Drive Inductance: 1550 μH
DCR: 1400:640 mΩ
Leakage Inductance: 2400 nH
ET Product: 71 V-μs

GT06-111-037-U

Drive Inductance: 420 μH
DCR: 750:320:320 mΩ
Leakage Inductance: 900 nH
ET Product: 37 V-μs

GT06-111-049

Drive Inductance: 882 μH
DCR: 720:720:720 mΩ
Leakage Inductance: 360 nH
ET Product: 49 V-μs

GT06-111-049-U

Drive Inductance: 700 μH
DCR: 970:440:440 mΩ
Leakage Inductance: 1300 nH
ET Product: 49 V-μs

GT06-111-069-U

Drive Inductance: 1450 μH
DCR: 1300:630:630 mΩ
Leakage Inductance: 1400 nH
ET Product: 69 V-μs

GT06-111-100

Drive Inductance: 2000 μH
DCR: 1430:1300:1300 mΩ
Leakage Inductance: 470 nH
ET Product: 100 V-μs

GT06-120-106-U

Drive Inductance: 550 μH
DCR: 930:930 mΩ
Leakage Inductance: 1200 nH
ET Product: 106 V-μs

GT06-120-142-U

Drive Inductance: 1000 μH
DCR: 1170:1250 mΩ
Leakage Inductance: 1300 nH
ET Product: 142 V-μs

GT06-122-044-U

Drive Inductance: 95 μH
DCR: 450:390390 mΩ
Leakage Inductance: 400 nH
ET Product: 44 V-μs

GT06-122-053

Drive Inductance: 162 μH
DCR: 360:720:720 mΩ
Leakage Inductance: 240 nH
ET Product: 53 V-μs

GT06-122-053-U

Drive Inductance: 140 μH
DCR: 500:450:450 mΩ
Leakage Inductance: 400 nH
ET Product: 53 V-μs

GT06-122-071-U

Drive Inductance: 245 μH
DCR: 610:610:610 mΩ
Leakage Inductance: 500 nH
ET Product: 71 V-μs

GT06-1X0-039-U

Drive Inductance: 390 μH
DCR: 800:340 mΩ
Leakage Inductance: 1300 nH
ET Product: 39 V-μs

GT06-1X0-078-U

Drive Inductance: 1550 μH
DCR: 1350:710 mΩ
Leakage Inductance: 2000 nH
ET Product: 78 V-μs

Drive Inductance: 380 μH
DCR: 730:330:330 mΩ
Leakage Inductance: 1000 nH
ET Product: 39 V-μs

Drive Inductance: 650 μH
DCR: 910:470:470 mΩ
Leakage Inductance: 1000 nH
ET Product: 51 V-μs

Drive Inductance: 1150 μH
DCR: 1180:640:640 mΩ
Leakage Inductance: 1300 nH
ET Product: 69 V-μs
