ICE Components · Gate Drive Transformers

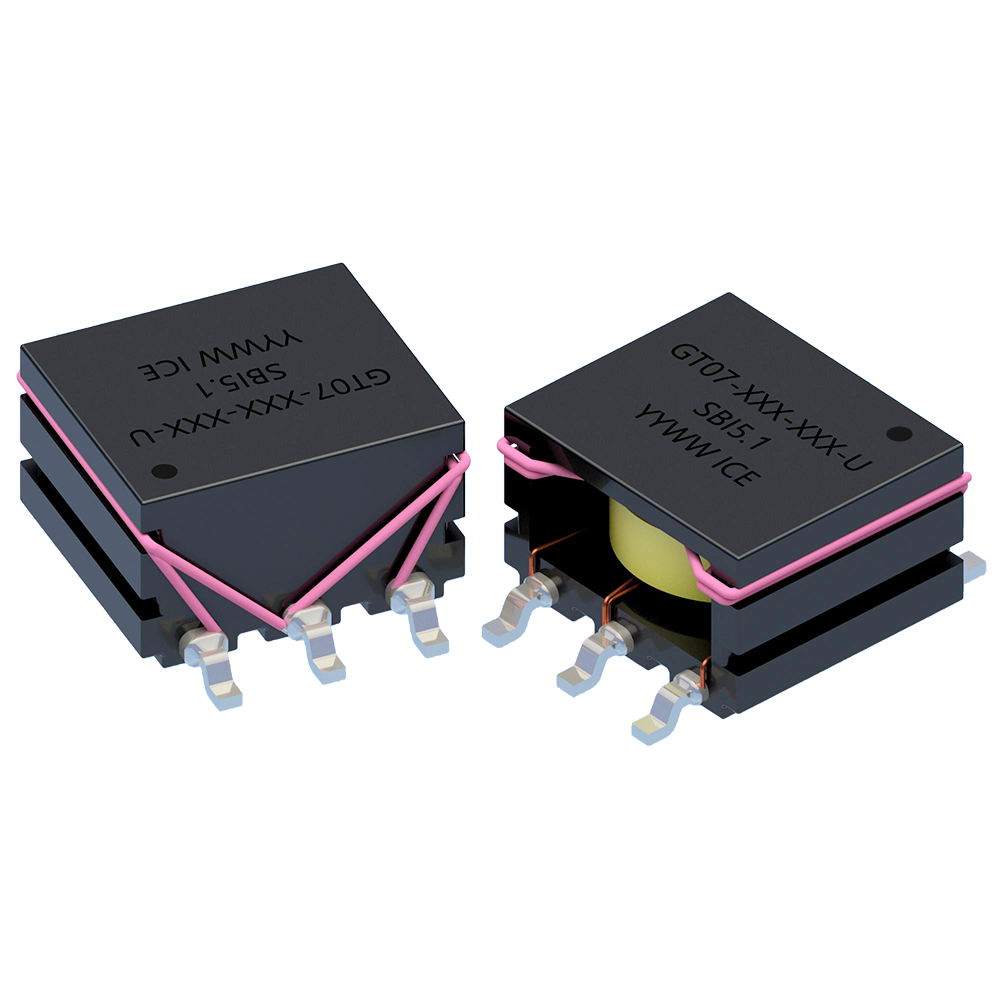

GT07 Series

7 parts · 15 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategoryGate Drive Transformers

Parts7

Datasheet

Smart Filters

Describe what you need

Parametric Filters

GT07-110-013

Drive Inductance: 100 μH
DCR: 370:300 mΩ
Leakage Inductance: 300 nH
ET Product: 13 V-μs

GT07-110-015-U

Drive Inductance: 145 μH
DCR: 300:150 mΩ
Leakage Inductance: 500 nH
ET Product: 15 V-μs

GT07-110-027

Drive Inductance: 340 μH
DCR: 720:530 mΩ
Leakage Inductance: 600 nH
ET Product: 27 V-μs

GT07-120-045

Drive Inductance: 166 μH
DCR: 520:720 mΩ
Leakage Inductance: 350 nH
ET Product: 45 V-μs

GT07-120-051-U

Drive Inductance: 235 μH
DCR: 450:450 mΩ
Leakage Inductance: 600 nH
ET Product: 51 V-μs

GT07-130-060-U

Drive Inductance: 170 μH
DCR: 550:550 mΩ
Leakage Inductance: 600 nH
ET Product: 60 V-μs

GT07-1X0-031-U

Drive Inductance: 480 μH
DCR: 550:300 mΩ
Leakage Inductance: 800 nH
ET Product: 31 V-μs
