ICE Components · SMT High Current Inductors

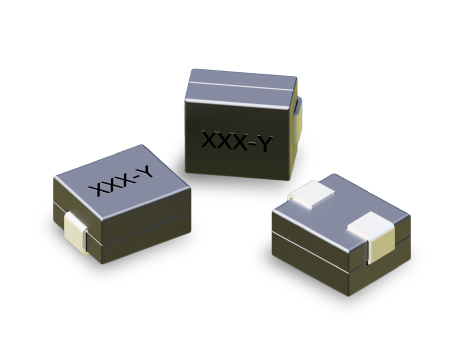

LP02-2 Series

6 parts · 8 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategorySMT High Current Inductors

Parts6

Datasheet

Smart Filters

Describe what you need

Parametric Filters

LP02-101-2

Inductance: 100 nH
DCR: 0.3 mΩ
Isat: 65 A
Idc: 48 A

LP02-151-2

Inductance: 155 nH
DCR: 0.3 mΩ
Isat: 42 A
Idc: 48 A

LP02-181-2

Inductance: 180 nH
DCR: 0.3 mΩ
Isat: 33 A
Idc: 48 A

LP02-201-2

Inductance: 210 nH
DCR: 0.3 mΩ
Isat: 25 A
Idc: 48 A

LP02-231-2

Inductance: 235 nH
DCR: 0.3 mΩ
Isat: 24 A
Idc: 48 A

LP02-301-2

Inductance: 310 nH
DCR: 0.3 mΩ
Isat: 16 A
Idc: 48 A
