ICE Components · SMT High Current Inductors

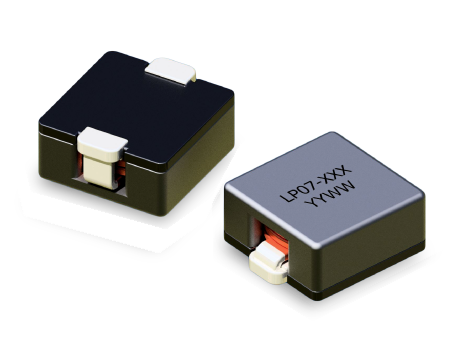

LP07 Series

7 parts · 8 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategorySMT High Current Inductors

Parts7

Datasheet

Smart Filters

Describe what you need

Parametric Filters

LP07-142

Inductance: 1400 nH
DCR: 2.2 mΩ
Isat: 28 A
Idc: 26 A

LP07-181

Inductance: 180 nH
DCR: 0.41 mΩ
Isat: 85 A
Idc: 45 A

LP07-202

Inductance: 2000 nH
DCR: 3 mΩ
Isat: 24 A
Idc: 21 A

LP07-282

Inductance: 2800 nH
DCR: 4.3 mΩ
Isat: 20 A
Idc: 17 A

LP07-392

Inductance: 3900 nH
DCR: 5.25 mΩ
Isat: 16 A
Idc: 16 A

LP07-451

Inductance: 450 nH
DCR: 0.9 mΩ
Isat: 53 A
Idc: 40 A

LP07-801

Inductance: 800 nH
DCR: 1.4 mΩ
Isat: 36 A
Idc: 31 A
