ICE Components · Gate Drive Transformers

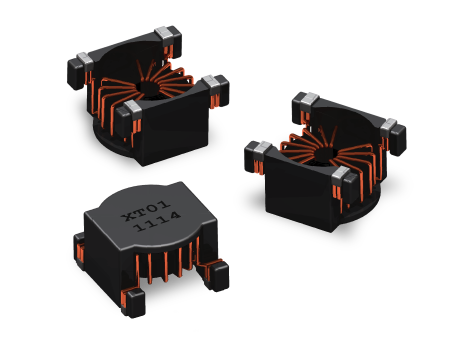

XT Series

4 parts · 12 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategoryGate Drive Transformers

Parts4

Datasheet

Smart Filters

Describe what you need

Parametric Filters

XT01

Drive Inductance: 100 μH
DCR: 320:320 mΩ
Leakage Inductance: 150 nH
ET Product: 10 V-μs

XT02

Drive Inductance: 140 μH
DCR: 350:350 mΩ
Leakage Inductance: 150 nH
ET Product: 12.8 V-μs

XT03

Drive Inductance: 31 μH
DCR: 120:120 mΩ
Leakage Inductance: 600 nH
ET Product: 3.75 V-μs

XT04

Drive Inductance: 86 μH
DCR: 140:140 mΩ
Leakage Inductance: 100 nH
ET Product: 6.25 V-μs
