ICE Components · SMT High Current Inductors

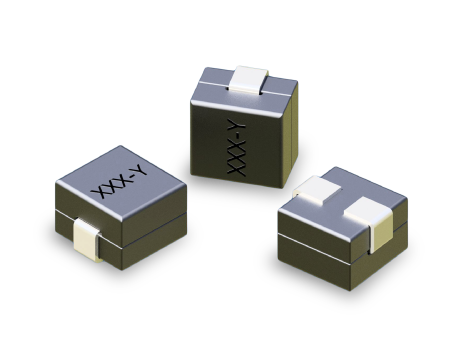

LP02-1 Series

6 parts · 8 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategorySMT High Current Inductors

Parts6

Datasheet

Smart Filters

Describe what you need

Parametric Filters

LP02-101-1

Inductance: 95 nH
DCR: 0.32 mΩ
Isat: 40 A
Idc: 42 A

LP02-141-1

Inductance: 140 nH
DCR: 0.32 mΩ
Isat: 35 A
Idc: 42 A

LP02-181-1

Inductance: 180 nH
DCR: 0.32 mΩ
Isat: 25 A
Idc: 42 A

LP02-251-1

Inductance: 250 nH
DCR: 0.32 mΩ
Isat: 18 A
Idc: 42 A

LP02-500-1S

Inductance: 50 nH
DCR: 0.22 mΩ
Isat: 85 A
Idc: 50 A

LP02-800-1S

Inductance: 85 nH
DCR: 0.22 mΩ
Isat: 55 A
Idc: 50 A
