ICE Components · SMT High Current Inductors

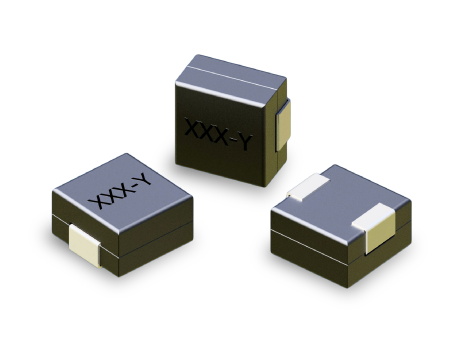

LP02-5 Series

10 parts · 8 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategorySMT High Current Inductors

Parts10

Datasheet

Smart Filters

Describe what you need

Parametric Filters

LP02-121-5

Inductance: 120 nH
DCR: 0.2 mΩ
Isat: 100 A
Idc: 50 A

LP02-191-5

Inductance: 190 nH
DCR: 0.2 mΩ
Isat: 77 A
Idc: 50 A

LP02-241-5

Inductance: 240 nH
DCR: 0.2 mΩ
Isat: 60 A
Idc: 50 A

LP02-281-5

Inductance: 280 nH
DCR: 0.2 mΩ
Isat: 50 A
Idc: 50 A

LP02-321-5

Inductance: 320 nH
DCR: 0.2 mΩ
Isat: 42 A
Idc: 50 A

LP02-381-5

Inductance: 380 nH
DCR: 0.2 mΩ
Isat: 35 A
Idc: 50 A

LP02-431-5

Inductance: 430 nH
DCR: 0.2 mΩ
Isat: 30 A
Idc: 50 A

LP02-511-5

Inductance: 510 nH
DCR: 0.2 mΩ
Isat: 24 A
Idc: 50 A

LP02-571-5

Inductance: 570 nH
DCR: 0.2 mΩ
Isat: 20 A
Idc: 50 A

LP02-771-5

Inductance: 770 nH
DCR: 0.2 mΩ
Isat: 12 A
Idc: 50 A
