ICE Components · THT High Current Inductors

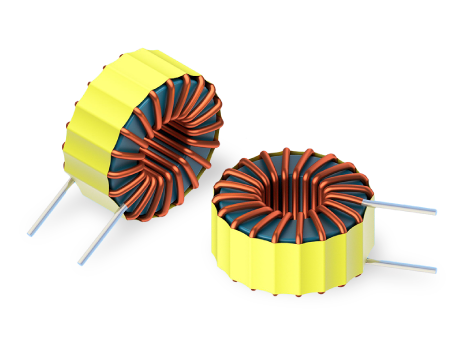

ITP Series

24 parts · 8 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategoryTHT High Current Inductors

Parts24

Datasheet

Smart Filters

Describe what you need

Parametric Filters

ITP-0010-020-V

Inductance: 10 μH
DCR: 6.7 mΩ
Isat: 20 A
Idc: 5 A

ITP-0012-019-V

Inductance: 12 μH
DCR: 7.8 mΩ
Isat: 19.1 A
Idc: 5 A

ITP-0015-018-V

Inductance: 15 μH
DCR: 9.5 mΩ
Isat: 18 A
Idc: 6 A

ITP-0018-017-V

Inductance: 18 μH
DCR: 11.1 mΩ
Isat: 17.2 A
Idc: 6 A

ITP-0022-016-V

Inductance: 22 μH
DCR: 13.2 mΩ
Isat: 16.4 A
Idc: 7 A

ITP-0027-016-V

Inductance: 27 μH
DCR: 15.7 mΩ
Isat: 15.6 A
Idc: 8 A

ITP-0033-012-V

Inductance: 33 μH
DCR: 21.3 mΩ
Isat: 11.7 A
Idc: 13 A

ITP-0039-011-V

Inductance: 39 μH
DCR: 24.7 mΩ
Isat: 11.2 A
Idc: 14 A

ITP-0047-011-V

Inductance: 47 μH
DCR: 29 mΩ
Isat: 10.7 A
Idc: 16 A

ITP-0056-010-V

Inductance: 56 μH
DCR: 33.7 mΩ
Isat: 10.2 A
Idc: 17 A

ITP-0068-008-V

Inductance: 68 μH
DCR: 45.2 mΩ
Isat: 7.7 A
Idc: 30 A

ITP-0100-007-V

Inductance: 100 μH
DCR: 63.1 mΩ
Isat: 7 A
Idc: 37 A

ITP-0120-007-V

Inductance: 120 μH
DCR: 73.9 mΩ
Isat: 6.7 A
Idc: 40 A

ITP-0150-005-V

Inductance: 150 μH
DCR: 101.4 mΩ
Isat: 5 A
Idc: 71 A

ITP-0180-005-V

Inductance: 180 μH
DCR: 118.9 mΩ
Isat: 4.8 A
Idc: 78 A

ITP-0220-006-V

Inductance: 220 μH
DCR: 123.8 mΩ
Isat: 5.8 A
Idc: 54 A

ITP-0270-006-V

Inductance: 270 μH
DCR: 147.2 mΩ
Isat: 5.5 A
Idc: 60 A

ITP-0330-005-V

Inductance: 330 μH
DCR: 174.1 mΩ
Isat: 5.2 A
Idc: 67 A

ITP-0390-005-V

Inductance: 390 μH
DCR: 200.2 mΩ
Isat: 5 A
Idc: 72 A

ITP-0470-004-V

Inductance: 470 μH
DCR: 271.4 mΩ
Isat: 3.8 A
Idc: 130 A

ITP-0560-004-V

Inductance: 560 μH
DCR: 314.8 mΩ
Isat: 3.6 A
Idc: 140 A

ITP-0680-003-V

Inductance: 680 μH
DCR: 370.7 mΩ
Isat: 3.4 A
Idc: 150 A

ITP-0820-003-V

Inductance: 820 μH
DCR: 500.9 mΩ
Isat: 2.6 A
Idc: 270 A

ITP-1000-002-V

Inductance: 1000 μH
DCR: 593.6 mΩ
Isat: 2.4 A
Idc: 300 A
