ICE Components · SMT High Current Inductors

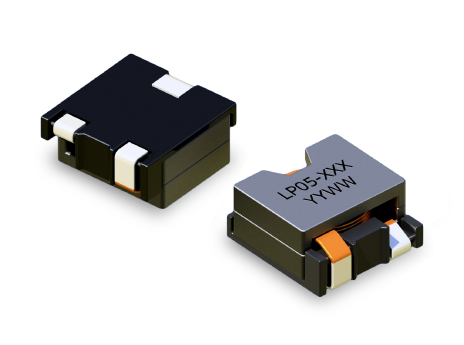

LP05 Series

12 parts · 8 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategorySMT High Current Inductors

Parts12

Datasheet

Smart Filters

Describe what you need

Parametric Filters

LP05-101

Inductance: 100 nH
DCR: 0.56 mΩ
Isat: 55 A
Idc: 40 A

LP05-102

Inductance: 1000 nH
DCR: 4.5 mΩ
Isat: 17 A
Idc: 14 A

LP05-132

Inductance: 1300 nH
DCR: 4.5 mΩ
Isat: 12 A
Idc: 14 A

LP05-181

Inductance: 180 nH
DCR: 1.3 mΩ
Isat: 45 A
Idc: 28 A

LP05-221

Inductance: 220 nH
DCR: 1.3 mΩ
Isat: 40 A
Idc: 28 A

LP05-271

Inductance: 270 nH
DCR: 1.3 mΩ
Isat: 35 A
Idc: 28 A

LP05-331

Inductance: 330 nH
DCR: 1.3 mΩ
Isat: 30 A
Idc: 28 A

LP05-391

Inductance: 390 nH
DCR: 2.1 mΩ
Isat: 30 A
Idc: 22 A

LP05-471

Inductance: 470 nH
DCR: 2.1 mΩ
Isat: 25 A
Idc: 22 A

LP05-561

Inductance: 560 nH
DCR: 3.3 mΩ
Isat: 25 A
Idc: 18 A

LP05-681

Inductance: 680 nH
DCR: 3.3 mΩ
Isat: 20 A
Idc: 18 A

LP05-821

Inductance: 820 nH
DCR: 4.5 mΩ
Isat: 20 A
Idc: 14 A
