ICE Components · SMT High Current Inductors

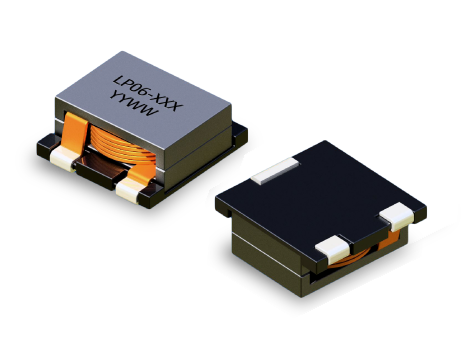

LP06 Series

17 parts · 8 parametric specifications · In-stock inquiry available

ManufacturerICE Components

CategorySMT High Current Inductors

Parts17

Datasheet

Smart Filters

Describe what you need

Parametric Filters

LP06-101

Inductance: 100 nH
DCR: 0.5 mΩ
Isat: 75 A
Idc: 45 A

LP06-102

Inductance: 1000 nH
DCR: 3.9 mΩ
Isat: 28 A
Idc: 17 A

LP06-181

Inductance: 180 nH
DCR: 1 mΩ
Isat: 65 A
Idc: 35 A

LP06-221

Inductance: 220 nH
DCR: 1 mΩ
Isat: 60 A
Idc: 35 A

LP06-222

Inductance: 2200 nH
DCR: 4.6 mΩ
Isat: 15 A
Idc: 14 A

LP06-271

Inductance: 270 nH
DCR: 1 mΩ
Isat: 55 A
Idc: 35 A

LP06-331

Inductance: 330 nH
DCR: 1 mΩ
Isat: 48 A
Idc: 35 A

LP06-332

Inductance: 3300 nH
DCR: 6.3 mΩ
Isat: 12 A
Idc: 12 A

LP06-391

Inductance: 390 nH
DCR: 1.9 mΩ
Isat: 45 A
Idc: 25 A

LP06-422

Inductance: 4200 nH
DCR: 7.1 mΩ
Isat: 11 A
Idc: 10.5 A

LP06-471

Inductance: 470 nH
DCR: 1.9 mΩ
Isat: 42 A
Idc: 25 A

LP06-472

Inductance: 4700 nH
DCR: 7.1 mΩ
Isat: 10 A
Idc: 9.5 A

LP06-561

Inductance: 560 nH
DCR: 2.5 mΩ
Isat: 40 A
Idc: 22 A

LP06-562

Inductance: 5600 nH
DCR: 10 mΩ
Isat: 8 A
Idc: 9.5 A

LP06-681

Inductance: 680 nH
DCR: 2.5 mΩ
Isat: 35 A
Idc: 22 A

LP06-722

Inductance: 7200 nH
DCR: 12 mΩ
Isat: 7 A
Idc: 8 A

LP06-821

Inductance: 820 nH
DCR: 3.9 mΩ
Isat: 32 A
Idc: 17 A
